Home Screen Technical Overview

This is the primary landing screen, providing a dynamic and responsive interface that adapts based on the user's authentication state and available remote devices.

Generally, this screen would always be the first screen a user sees when they open the Smarta Mobile app.

Key Functionalities

User Authentication & Navigation

• Authentication Check:

  • The screen verifies whether the user is logged in using the platform's authentication context.
  • If a user is not authenticated, they are immediately redirected to the login page.

• Dynamic Content Display:

  • For authenticated users, the screen conditionally displays controls for remote water management devices.

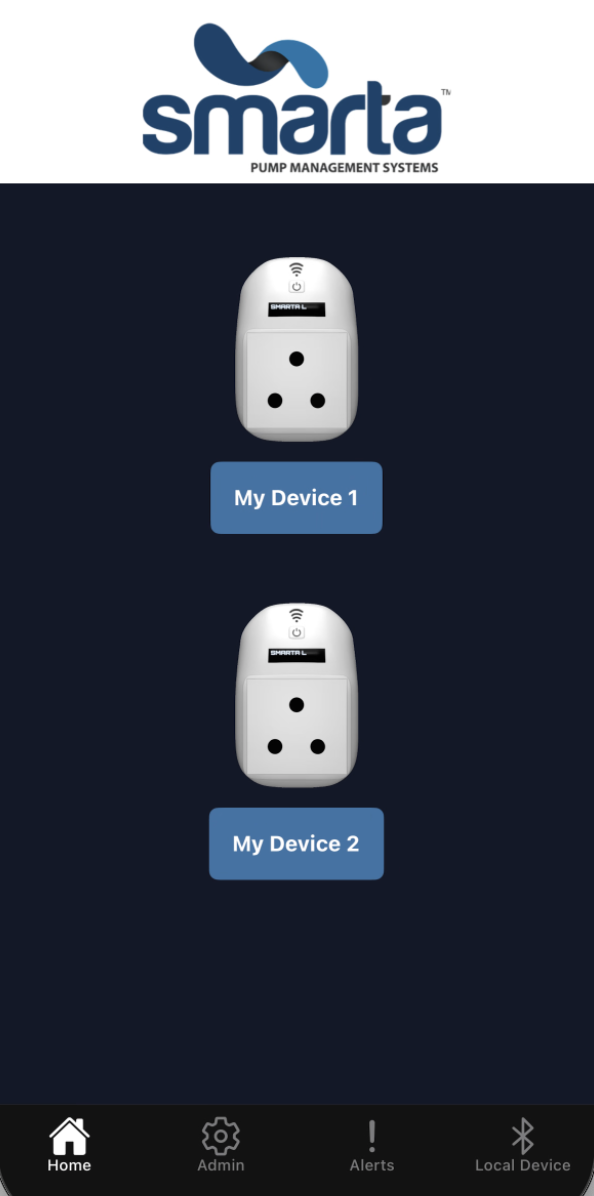

    When logged in and devices are available via Bluetooth scan

  • For non-authenticated users, a welcome message and introductory information about Smarta Mobile are presented.

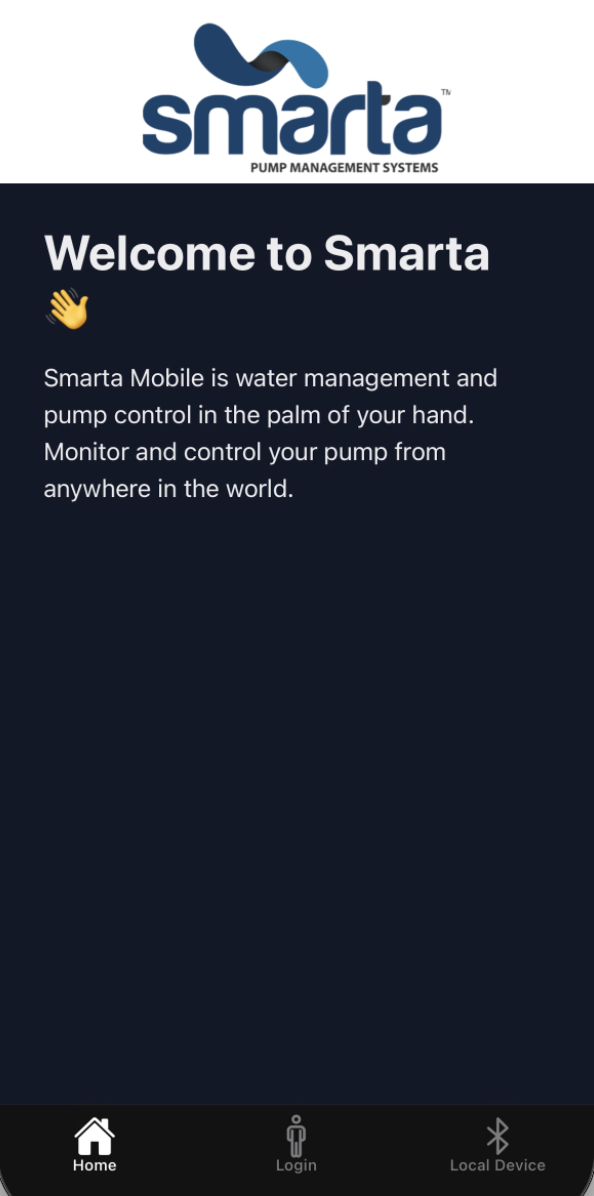

    When logged out

Remote Device Integration

• Device Data Retrieval:
  • The screen fetches remote device settings from a Smarta backend using the user's stored authentication token.
  • The data retrieval is performed through periodic polling (every 10 seconds) to ensure that the information on the screen is up to date.
• Device Interaction:
  • When remote devices are available, each device is represented with an image and a corresponding interactive control.
  • Tapping on a device control navigates the user to a dedicated screen of the selected device.



    The dedicated device screen
